Hyundai Palisade: Hydraulic System / Description and operation

Hyundai Palisade (LX2) 2020-2024 Service Manual / Automatic Transaxle System (A8LF1) / Hydraulic System / Description and operation

Description
The hydraulic system consists of a valve body, an oil filter and an oil pump.
The oil pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels.
The oil becomes highly pressurized as it exits the oil pump and passes through the line pressure valve before being fed to the clutch & brake control valve, clutch, and brakes.
TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

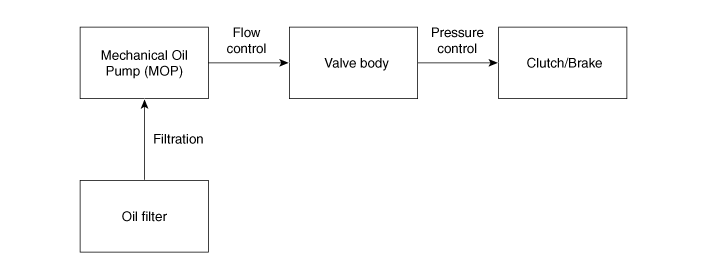

Flow of the hydraulic system

Hyundai Palisade. Description and operation

    Hydraulic System

    ..

    Components and components location

    ..
