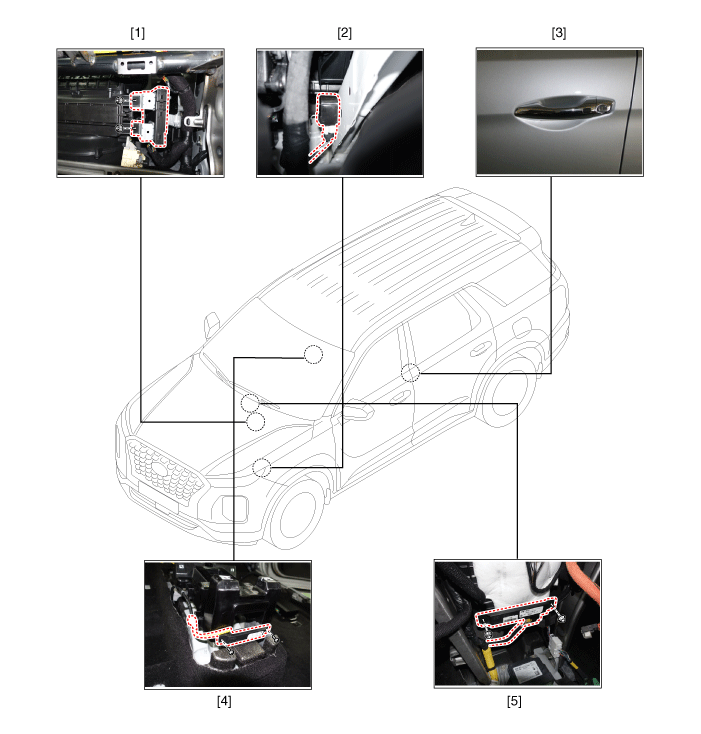

Component Location (1)

Hyundai Palisade. Components and components location

1. Integrated Body Control Unit (IBU)
2. Buzzer
3. Door outside handle
4. Interior antenna 2
5. Interior antenna 1

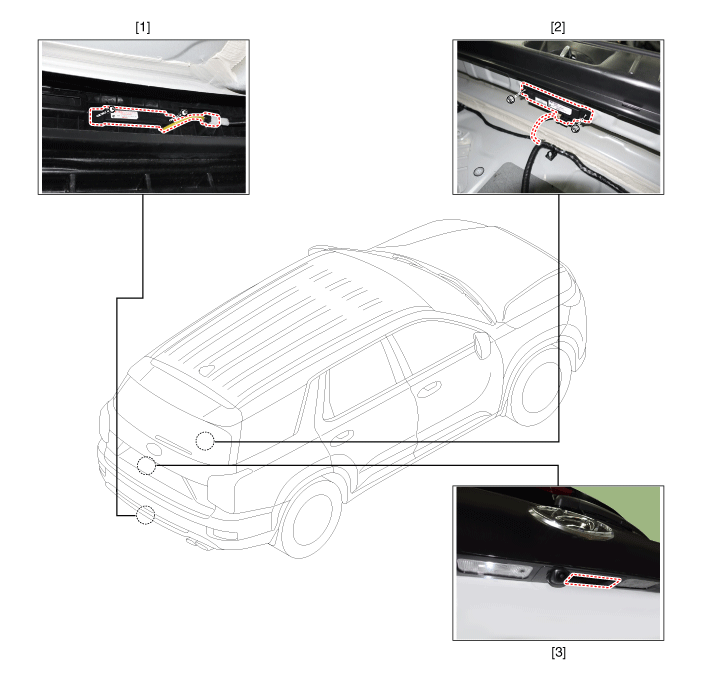

Component Location (2)

Hyundai Palisade. Components and components location

1. Bumper antenna
2. Trunk antenna
3. Tailgate open switch

    Specifications

    Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 - 16V Operating temperature -22°F to 167°F (-30°C to- 75°C) Load Max...

    Description and operation

    Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed...
