Hyundai Palisade (LX2): Driving Your Vehicle / Rear Cross-Traffic Collision Warning (RCCW)/ Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
System Description

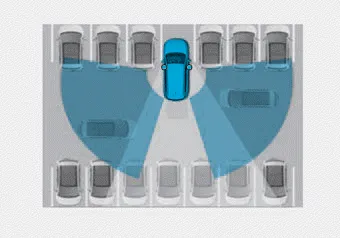

Rear Cross-Traffic Collision Warning (RCCW) system
The Rear Cross-Traffic Collision Warning (RCCW) system uses radar sensors to monitor the approaching cross traffic from the left and right side of the vehicle when your vehicle is in reverse.
The blind spot detection range varies relative to the approaching vehicle speed.
Rear Cross-Traffic Collision- Avoidance Assist (RCCA) system
The Rear Cross-Traffic Collision- Avoidance Assist (RCCA) system monitors approaching cross traffic from the left and right side of the vehicle when your vehicle is in reverse.
The Rear Cross-Traffic Collision- Avoidance Assist (RCCA) system may activate the Electronic Stability Control (ESC) in accordance with a possible collision with an approaching vehicle. It is to lower the possible collision risk or mitigate the possible collision damage.
WARNING
- Always be aware of road and traffic conditions while driving and be alert for unexpected situations even though the Rear Cross-Traffic Collision Warning system and Rear Cross-Traffic Collision- Avoidance Assist system are operating.
- The Rear Cross-Traffic Collision Warning system and Rear Cross-Traffic Collision- Avoidance Assist system are supplemental systems to assist you. Do not entirely rely on the systems. Always pay attention, while driving, for your safety.
- The Rear Cross-Traffic Collision Warning system and Rear Cross-Traffic Collision- Avoidance Assist system are not substitutes for proper and safe driving. Always drive safely and use caution when backing up the vehicle.
The driver must be cautious in the below situations because the system may not detect other vehicles or objects in certain circumstances: When a trailer or carrier is installed.
System setting Setting Parking Safety function The driver can activate the systems by placing the ignition switch to the ON position and by selecting 'User Settings → Driver Assistance → Parking Safety → Rear Cross- Traffic Safety'.
